3 Phase Power Installation Sydney: The Essential Homeowner's Guide for 2026

What does a 3 phase power installation in Sydney actually involve? Four parts: upgraded consumer mains from the street, a three phase switchboard, new metering, and the network connection itself, coordinated through an application with Ausgrid or Endeavour Energy. In NSW the street-to-meter side of that job can only be done by a Level 2 Accredited Service Provider, and the whole package is certified with a compliance certificate at the end.

⚡ Quick Answers: 3 phase power installation

• What is three phase power? Supply delivered over three active wires instead of one, giving 400 volts between phases and roughly triple the capacity of a single phase connection.
• How do I know what I have now? Look at your main switch: a wide triple-pole switch usually means three phase, a single narrow switch means single phase.
• What are the four parts of the job? Consumer mains and point of attachment, switchboard, metering, and the network connection.
• Who is allowed to do it? A Level 2 ASP for everything between the street and the meter. A standard electrician cannot legally connect you to the network.
• What does it cost and how long does it take? Typically $4,000 to $15,000+ depending on the site, over roughly 4 to 8 weeks. Our cost guide has the full breakdown.

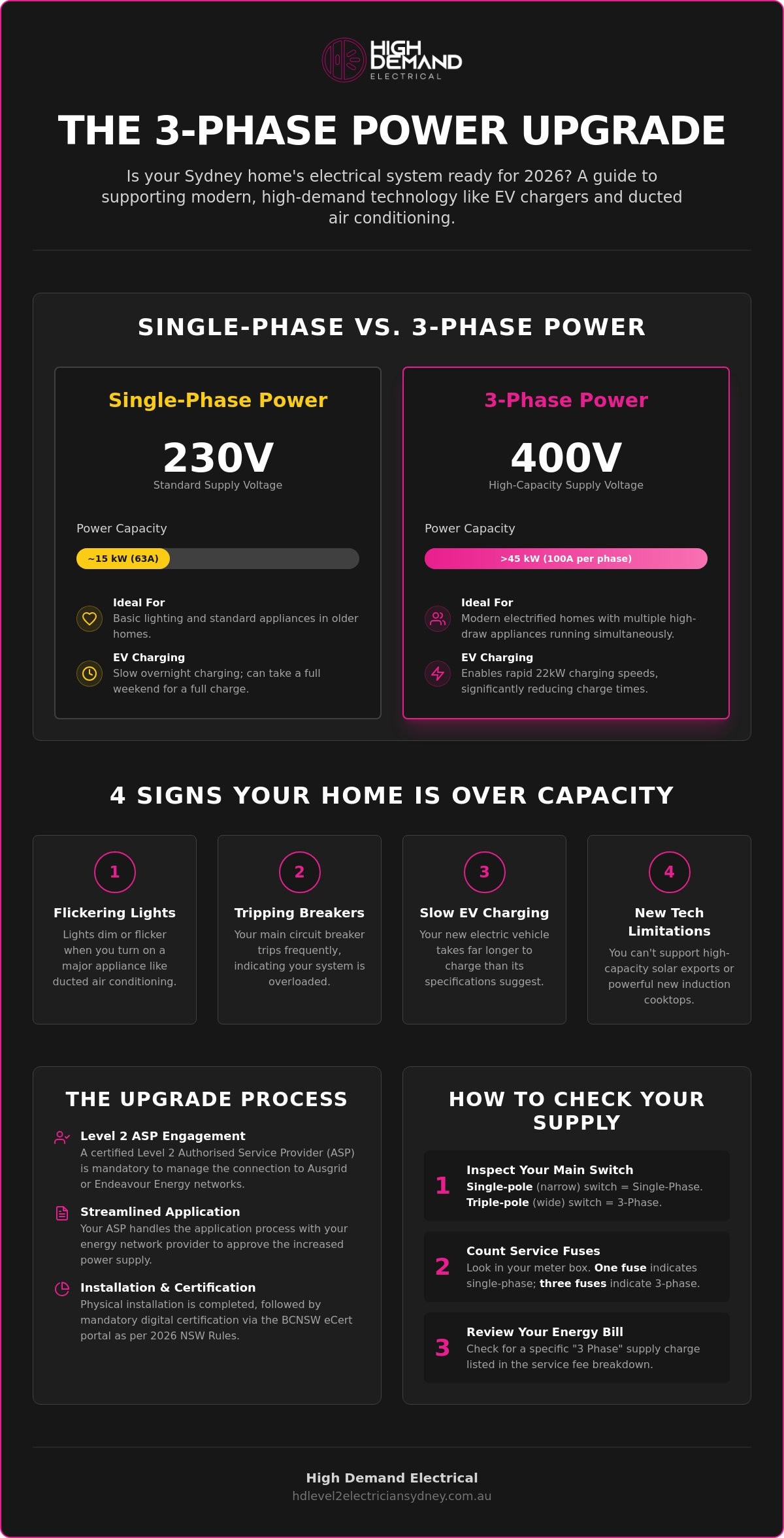

1. What three phase power is

A standard home connection is single phase: one active wire at 230 volts. Three phase delivers power over three active wires, giving 400 volts between phases and much more total capacity. Because the three phases are offset, big motors like ducted aircon compressors also run more smoothly on it.

That capacity is why three phase has moved from a commercial feature to a residential one. Fast EV charging, large ducted systems and fully electric households all lean on it, and our single vs three phase decision guide covers whether your home actually needs it.

2. How to tell what you have now

Open your switchboard and look at the main switch. A single narrow switch means single phase. A wide triple-pole switch, three switches joined as one, usually means you already have three phase. Three service fuses at the meter box point the same way, and some bills list a three phase supply charge. If it is still unclear, we confirm it in minutes during a site assessment.

3. The four parts of the installation

Consumer mains and point of attachment

The cables that carry power from the street to your home must be sized and rated for the new supply, which usually means new consumer mains. Overhead connections often need point of attachment work too; underground connections need a compliant trench and conduit. The differences are covered in our guide to single vs three phase consumer mains.

The switchboard

A three phase supply needs a three phase board with a triple-pole main switch and safety switches on the circuits. Old boards rarely convert; they get replaced, which is also the moment protection is brought up to current standards. See our switchboard upgrades page for what that involves.

The metering

Your meter changes with the supply. The new meter is arranged through your retailer as part of the job, and it is worth sorting tariff questions like controlled load at the same time via a smart meter upgrade.

The network connection

The connection itself happens on a planned outage day: the network de-energises, the Level 2 ASP connects the new mains, and supply comes back on three phases. The application that authorises all of this is lodged with your distributor beforehand, and you can check your network area in seconds with our postcode checker to see whether that is Ausgrid or Endeavour Energy.

4. Who does what

In NSW the split is strict. A licensed electrician can wire circuits inside your home. Only a Level 2 ASP can work on the service line and consumer mains between the street and your meter, lodge the connection paperwork, and connect you to the network. The difference is explained in our standard electrician vs Level 2 ASP guide. At completion the work is certified with a Certificate of Compliance for Electrical Work (CCEW), covered in our CCEW guide.

5. The signs your home is a candidate

Lights that dim when the ducted aircon starts, breakers that trip when several big appliances run together, an EV that cannot finish charging overnight, or an electrician telling you the supply is maxed out. Those symptoms point at capacity, and the decision framework in our decision guide plus a maximum demand check turn them into a yes or no.

6. Cost and timeline

Most Sydney installations land between $4,000 and $15,000+ all-in depending on overhead vs underground, the switchboard scope and any network charges. The itemised breakdown lives in our three phase cost guide, and the stage-by-stage wait is covered in how long a three phase upgrade takes. As a rule of thumb: one to two days of physical work inside a 4 to 8 week process, with the network application setting the pace.

How High Demand Electrical helps

We run the whole installation as one job: assessment, the Ausgrid or Endeavour Energy application, consumer mains, switchboard, metering coordination and certification. Level 2 ASP accredited on both Sydney networks, with the internal electrical licence to match, so there is no handover gap between the electrician and the ASP. What changes on the day and after is covered in what changes in a three phase upgrade.

3 phase installation FAQs (Sydney)

Do I need to upgrade my switchboard for three phase?

Almost always, yes. The board needs a triple-pole main switch and space for three phase circuits, and older boards get replaced rather than modified, bringing protection up to current standards at the same time.

Can a standard electrician install 3 phase power?

They can wire the internal circuits, but the street-to-meter connection is legally Level 2 ASP work. You need both licences on the job, which is why an ASP with an electrical contracting licence covers it end to end.

Will my bill increase on three phase?

You pay the same for each kilowatt-hour. Some retailers apply a slightly higher daily supply charge for three phase metering, so the fixed part of the bill can move a little while the usage price does not.

Do I need three phase for a wall-mounted EV charger?

No, single phase chargers around 7kW suit most drivers. Three phase unlocks faster AC charging up to 22kW, but only if your car's onboard charger accepts it. Our 3-phase EV charger guide covers both checks.
