Experiencing a sudden loss of power can disrupt your daily life significantly—from defrosting freezers to enduring uncomfortably hot nights without air conditioning. At High Demand Electrical, we understand the urgency of these situations. As a Level 2 accredited service provider, we specialise in the swift resolution of such emergencies, ensuring your electrical system is not only restored quickly but is also upgraded to prevent future issues. Our expertise lies in handling every aspect of consumer mains, from urgent repairs to comprehensive installations, all while ensuring compliance with the latest safety and regulatory standards.
As a Level 2 accredited service provider in Sydney, we possess the advanced technical skills and certification required to handle all aspects of consumer mains installation, maintenance, and upgrades.
What Are Consumer Mains?
Consumer mains are vital for transferring power from the local electricity network to your property. They play a crucial role in distributing electricity through your building’s main switchboard to various circuits. Whether for residential or commercial properties, ensuring these mains are robust and capable of handling current electrical loads is essential for safety and efficiency.
How Do They Differ From Service Mains?
Service Mains
Consumer Mains
Overhead Installation
Underground Installation
XLPE Cable
Defect Rectification
Difference Between Consumer Mains and Service Mains:
- Service Mains
These are the cables or lines that connect the broader electrical network to your property's point of attachment. This is typically where your electricity meter is located. - Consumer Mains
From the point of attachment, consumer mains take over, delivering power directly to your building's main switchboard and then throughout the property.
Old Cable VS Current Standard
Recent Consumer Mains Jobs
Real consumer mains jobs completed by our Level 2 ASP team. Tap a job to see why we were called, what we did and the result.

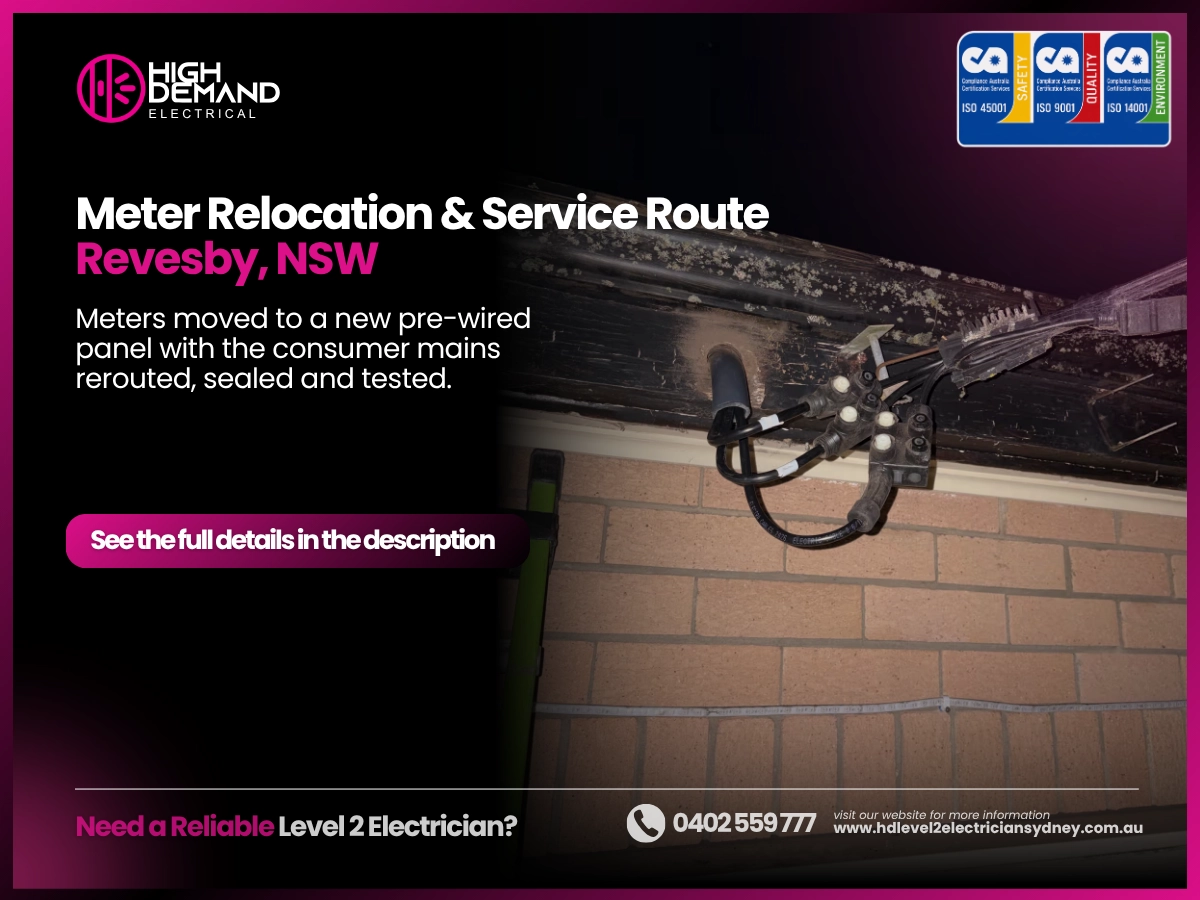

Meter Relocation & New Service Route in Revesby, NSW
A Revesby property's meters were moved to a new pre-wired panel, with the consumer mains rerouted through a new service route, then energised, tested and sealed.
Meters moved to a new pre-wired panel with the consumer mains rerouted
A Revesby property needed its meters moved from an existing board to a new pre-wired panel, with the consumer mains rerouted through a new service route. A licensed Level 2 ASP electrician in Sydney was needed for the disconnection, relocation and re-energisation.
- Disconnected the supply and relocated the meters to the new pre-wired panel
- Rerouted the consumer mains through the new service route
- Completed panel connections, fusing and neutral link
- Labelled and sealed the installation
- Energised and tested the supply, confirming correct operation
The property now has its metering on a new pre-wired panel with rerouted consumer mains, energised, tested and sealed. The site was left ready for the remaining works.
Three-Phase Commercial Upgrade & Smart Meter in Chippendale, NSW
A Chippendale commercial premises got a full three-phase upgrade with new consumer mains, service fuses and cabling in a single day, left ready for the Ausgrid smart meter.
Commercial three-phase supply upgraded in a single day and left ready for the Ausgrid smart meter
A commercial premises in Chippendale, NSW needed a full three-phase upgrade including new consumer mains, main switch, smart meter coordination with Ausgrid, and protection devices. A licensed Level 2 ASP electrician in Sydney was needed.
- Ran 25mm four-core cable through the ceiling space and core hole into the stormwater pump room and MSB room
- Installed three service fuses and ran cable to the sub-board in the shop
- Terminated all cabling, energised, tested, and tagged
- Left the board ready for Ausgrid smart meter upgrade with all compliance documentation submitted
The commercial premises had a fully upgraded three-phase supply installed and commissioned in a single day. The board was live and ready for the Ausgrid meter upgrade.
Switchboard Upgrade & Overhead Mains Replacement in Russell Lea, NSW
A Russell Lea home got a new three-phase switchboard with RCBOs on every circuit, 40m of new consumer mains and new overhead service mains from a repositioned point of attachment.
New three-phase switchboard, consumer mains and overhead service mains
A Russell Lea home needed its point of attachment repositioned, a new three-phase switchboard with RCBOs on every final subcircuit, new consumer mains and new overhead service mains. Point-of-attachment and overhead service work requires a licensed Level 2 ASP electrician in Sydney.
- Installed a new B&R N20 switchboard with nine 7m 2.5mm² TPS tails, one 8m 6mm² tail and a large roof-space junction box, terminating all ten subcircuits
- Installed a new earth stake with 3m of 6mm² earthing cable, along with circuit breakers, surge protection and service protection devices
- Ran 40m of 16mm² XLPE consumer mains and installed a new service neutral
- Removed the old sub-board, redundant cabling and old overhead service mains, then installed new three-phase overhead service mains — with a generator supplied free of charge for the day to keep the home powered
The property is now on a new three-phase board with every subcircuit protected, surge protection fitted and fresh overhead mains from the repositioned point of attachment. The homeowner kept power throughout the works thanks to the generator we supplied at no charge.
Private Pole Removal & Rafter Bracket Changeover in Dulwich Hill, NSW
A rusted private pole in Dulwich Hill was removed and the consumer mains re-established on a new 500mm rafter bracket, weatherproofed and reconnected.
Failed private pole removed and mains moved to a new rafter bracket
A private pole in a Dulwich Hill front yard had rusted through at the base and come down during council works nearby. With the pole gone, the consumer mains needed a new point of attachment, and a licensed Level 2 ASP in Sydney was called in urgently to re-establish the connection.
- Removed the existing consumer mains and the failed private pole
- Installed a 700mm timber support and a new 500mm rafter bracket
- Sleeved and secured the consumer mains up the new bracket and fitted weatherproof Dektite flashing
- Connected the consumer mains to Ausgrid's overhead service mains, then tested and commissioned
The property is connected again, now off the roof rather than off a rusted pole, with the penetration weatherproofed. The installation was tested and commissioned before leaving site.
Switchboard, Consumer Mains & Overhead Service Renewal in Glebe, NSW
A Glebe property's ageing switchboard, consumer mains and overhead service were renewed, with a new earth stake restoring the earth fault return path.
New switchboard, consumer mains, overhead service and earth stake installed
A property in Glebe had an ageing main switchboard, deteriorated overhead consumer mains and no sound local earth fault return path. Renewing the service mains and the point of attachment is network-side work, so a licensed Level 2 ASP in Sydney was required to carry out the full upgrade.
- Removed the existing main switchboard and consumer mains, then installed a new main switchboard and panel with new consumer mains run in 40mm HD conduit to the point of attachment
- Replaced the point of attachment hook and installed new overhead service mains from the network pole
- Installed a new earth stake to restore the earth fault return path
- Extended the subcircuits and connected them to RCBO protection, then re-energised, tested and tagged the installation
The property is now supplied through new overhead service mains and consumer mains into a new switchboard with RCBO protection throughout. The earthing system was restored, and the installation was tested and tagged before supply was returned.
Switchboard & Consumer Mains Upgrade in Lalor Park, NSW
A Lalor Park property received new consumer mains and a new B&R N20 switchboard with individual RCBO protection on every circuit and surge protection refitted.
New consumer mains and B&R switchboard with an RCBO on every circuit
A Lalor Park property needed a full switchboard replacement with new three-phase consumer mains from the point of attachment, individual RCBO protection on every circuit and a consolidated smart meter. Consumer mains and metering work calls for a licensed Level 2 ASP electrician in Sydney.
- Removed the existing switchboard, identifying and labelling every circuit first
- Installed new consumer mains through the roof space and fitted a new B&R N20 switchboard enclosure
- Reconnected all circuits to individual RCBO safety switches and relocated the existing surge protection device
- Installed new service fuses, a new switchboard panel and the existing single-phase and off-peak meters, then re-energised, tested and labelled the installation
The property now runs on a new B&R board with every circuit on its own RCBO, new consumer mains and surge protection back in place. The installation was tested, re-energised and fully labelled before we left site.
Switchboard Relocation & Consumer Mains Replacement in Dover Heights, NSW
A deteriorated timber switchboard in Dover Heights was replaced and relocated, with new consumer mains to the point of attachment and fresh earthing installed.
Rotted timber switchboard replaced and relocated, with new consumer mains and earthing
A Dover Heights property still had a deteriorated timber switchboard enclosure that needed replacing and relocating to a compliant position, along with new single-phase consumer mains back to the point of attachment. Consumer mains and point-of-attachment work requires a licensed Level 2 ASP electrician in Sydney.
- Safely isolated the supply, then removed the deteriorated timber enclosure after labelling and disconnecting every existing circuit
- Installed new consumer mains through the wall cavity and roof space to the point of attachment
- Installed and wired the new switchboard, extending and reconnecting all existing subcircuits
- Installed new earthing at the front of the property including a water bond and earth stake, then completed the point-of-attachment connections, testing, labelling and tagging
The property now has a compliant switchboard in a safe location, new consumer mains and a fresh earthing system with water bond. Everything was tested, tagged and left energised.
Our Energy Providers
Authorised by Sydney's major networks
How Consumer Mains Installation Works
Service Mains
Consumer Mains
Overhead Installation
Underground Installation
XLPE Cable
Defect Rectification
Our Services: Installation and Upgrades
Installation Services
- We use state-of-the-art technology and materials, such as Cross-Linked Polyethylene (XLPE) cables, known for their durability, reliability, and safety.
- We offer both overhead and underground installation options, depending on your property's layout and specific needs.
Upgrade Services
- We begin with a thorough assessment of your current electrical system to determine the need for an upgrade.
- We then tailor our services to enhance capacity or replace outdated systems, ensuring all installations meet the latest standards for electrical safety and efficiency.
Sized Right, Installed to Current Standards
team
pricing
urgent faults
Get a free consumer mains assessment — sized correctly, done once.
Signs You Need a Consumer Mains Upgrade
- Aging Infrastructure and Overload
Modern households and businesses use a multitude of electrical devices simultaneously, often putting older mains under significant stress. This can lead to overloaded lines and power losses, indicating that your existing consumer mains may no longer be adequate for today’s electrical demands. - Signs of Defective Mains
Frequent power outages, defective lines from deterioration, or low insulation resistance are common issues. Such problems often prompt an electrical defect notice from the authority network, signaling a need for an immediate upgrade. - Frequent circuit breaker trips, which indicate that your current system may be overloaded.
- Flickering or dimming lights, especially when using appliances that consume a lot of power.
- Buzzing sounds from panels or a burning smell, which are critical signs of potential electrical hazards.
Safety and Compliance
As a Level 2 accredited provider, High Demand Electrical adheres to stringent safety protocols. All our installations comply with the latest NSW electrical safety regulations, which not only protect your property but also ensure the safety and well-being of its occupants. Compliance with these standards is not optional but a fundamental aspect of our service commitment.
Contact USWhy Choose High Demand Electrical?
- Rapid Response
Our local presence in Sydney ensures quick and reliable service, which is especially crucial in emergency situations. - Quality Craftsmanship
We pride ourselves on the precision and care we bring to every project, regardless of size. - Transparent Pricing
All costs are clearly outlined upfront, with no hidden fees, ensuring you can make informed financial decisions.
Testimonials
Services We Offer
Get Your Quote Today
High Demand Electrical - Consumer Mains Installation
Contact High Demand Electrical
Don’t compromise on safety and efficiency. Contact High Demand Electrical today for a free consultation or to schedule your consumer mains installation or upgrade.
Contact US
FAQs
We recommend a professional inspection every five years, or sooner if you notice any signs of a potential issue — frequent breaker trips, flickering lights, buzzing from the switchboard, or a burning smell. Older cabling in particular benefits from being checked well before it becomes a problem.
Yes, partial upgrades are possible and can be an effective way to improve safety and capacity without a full system overhaul, depending on what our assessment finds and where the issue actually is.
Many older Sydney properties still have 6mm cable rated at around 40 amps, sized for a much lighter electrical load than modern households draw. Solar export, EV chargers, ducted air conditioning and induction cooktops all push demand well past what older cabling was designed for. Current standards require a minimum of 16mm XLPE cable for domestic installations, which is why an upgrade is so often recommended alongside these additions.
Overhead is the more common and generally more affordable option, running from the street connection to your switchboard or a private power pole. Underground is increasingly popular in Sydney for aesthetic reasons and because the cabling is better protected from storm and impact damage, but it typically costs more due to trenching and conduit work. We can advise which suits your property and budget.
Overhead installations typically cost less than underground, given underground requires trenching and conduit work. Design fees can also apply depending on the complexity of the job and property size. We provide a fixed, upfront quote after assessing your site and connection type.
