Tesla Wall Connector Installation Sydney: The 2026 Homeowner’s Guide

Did you know that over 217 new battery electric vehicles are added to NSW roads every single day? As Tesla continues to dominate the market, the rush for a Tesla wall connector installation Sydney homeowners can rely on has never been more urgent. You've likely realised that plugging into a standard wall socket isn't just slow; it's often inadequate for the continuous 32A load your new Model Y or Model 3 demands. It's natural to feel concerned about whether your home’s older switchboard or consumer mains can handle the pressure without risking an electrical overload or a network violation.

We understand the anxiety of matching cutting-edge vehicle technology with Sydney’s diverse range of aging electrical infrastructure. This guide will show you exactly how to secure a safe, legal, and high-speed charging setup that complies with AS/NZS 3000 and the Service and Installation Rules of NSW. As a Level 2 ASP (EC Licence 397193C), we'll explain the critical difference between a standard electrician and an authorised provider, the 2026 digital CCEW requirements, and how to verify if your property needs a three-phase power upgrade to support your new Tesla.

Tesla Wall Connector Installation Sydney: Understanding the Basics

The Tesla Gen 3 Wall Connector is the definitive home charging solution for Sydney residents, designed to provide a high-speed, permanent power source for the Model 3, Model Y, and Model S. While many new owners consider using the Mobile Connector, relying on a standard 10A household socket for daily use is inefficient and often unsafe for long-term continuous loads. A professional Tesla wall connector installation Sydney wide ensures your vehicle is charged via a dedicated circuit, mitigating the risks of overheating associated with standard domestic outlets that were never designed for a sustained 32A draw.

To better understand this concept, watch this helpful video:

Any installation in Australia must strictly adhere to AS/NZS 3000, known as the Wiring Rules. This standard mandates specific circuit protection and cable sizing to handle the continuous thermal load. In Sydney, your property falls under either the Ausgrid or Endeavour Energy networks. Each provider has distinct requirements for how high-load appliances are integrated into the grid. If your home’s existing infrastructure is insufficient, you will likely require a Level 2 electrician Sydney specialist to manage the connection point and consumer mains.

Key Features of the Gen 3 Wall Connector

The Gen 3 unit offers 2.4 GHz Wi-Fi connectivity, allowing for over-the-air firmware updates and advanced power-sharing capabilities between up to six units. Its IP55-rated enclosure is built for Sydney's harsh UV and coastal conditions, making it suitable for both indoor garage and outdoor driveway mounting. Depending on your home's power supply, this unit can add up to 71km of range per hour of charging, ensuring your vehicle is ready for the morning commute regardless of your previous day's mileage.

Compliance and the CCEW Requirement

Safety is not just a recommendation; it's a legal obligation. Every Tesla installation in NSW requires a Certificate of Compliance for Electrical Work (CCEW). This document serves as a formal record that the work meets AS/NZS 3000 and SIRNSW protocols. Since July 2026, all CCEWs must be lodged digitally via the Building Commission NSW eCert portal. High Demand Electrical (EC Licence 397193C) manages this entire notification process, ensuring your installation is registered correctly with Ausgrid or Endeavour Energy to prevent future defect notices or insurance complications.

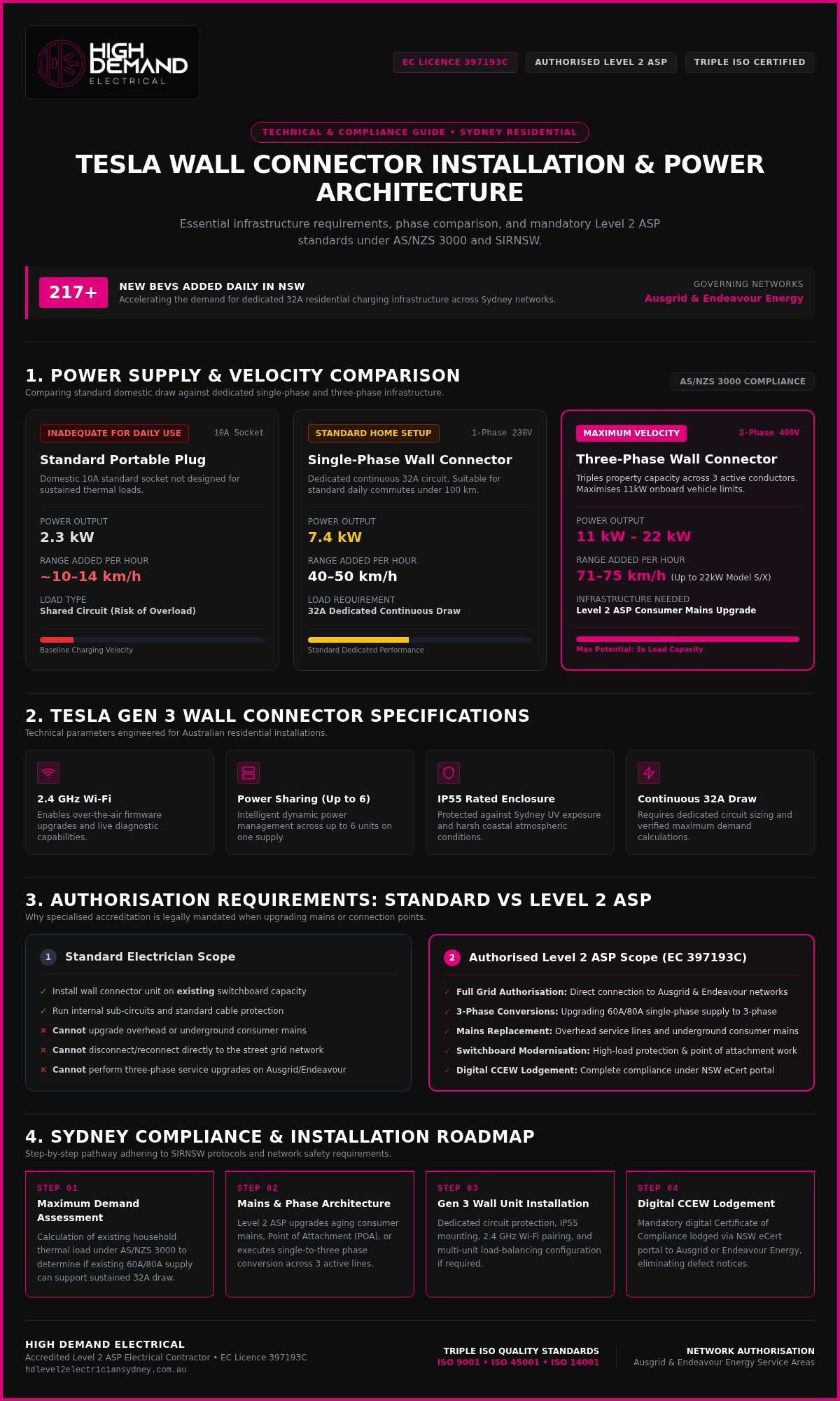

Single Phase vs Three Phase Power: Optimising Charging Speed

Sydney residential streets are typically serviced by either single-phase or three-phase power. Most older homes in the Inner West or Sutherland Shire operate on a single-phase supply, which provides 230 volts. While this is sufficient for standard appliances, a high-performance Tesla wall connector installation Sydney residents opt for can draw a continuous 32 amps. This load represents a significant portion of a standard 60A or 80A service. Transitioning to three-phase power involves distributing the electrical load across three separate active conductors. This effectively triples the available capacity for your property.

Your choice of power supply directly dictates the charging velocity of your Tesla. A Model 3 or Model Y equipped with an 11kW onboard charger will be limited to approximately 7.4kW on a single-phase connection. This adds roughly 40 to 50 kilometres of range per hour. Upgrading to a three-phase system allows the vehicle to utilise its full 11kW capacity. This increases that rate to about 75 kilometres per hour. For older Model S or Model X vehicles with dual chargers, the speed can reach up to 22kW.

When to Stick with Single Phase

If your daily commute is under 100 kilometres and you primarily charge overnight, single-phase power is often perfectly adequate. It's a cost-effective solution for modern Sydney homes that already feature high-capacity consumer mains. You won't need to invest in a Single Phase To Three Phase Upgrade if your current switchboard has the spare capacity to handle a dedicated 32A circuit. We verify this by performing a maximum demand calculation to ensure your charger won't compromise other essential services like hot water or air conditioning.

The Benefits of a Three Phase Upgrade

A three-phase upgrade is about more than just speed; it's about electrical stability. Modern Sydney lifestyles often include ducted air conditioning, induction cooktops, and solar inverters. Adding an EV charger to this mix on a single-phase line frequently leads to nuisance tripping or thermal stress on the main switch. By upgrading, you future-proof your home for multi-EV ownership and ensure the grid connection remains balanced. This process requires a Level 2 ASP to install new consumer mains and coordinate with Ausgrid or Endeavour Energy. If you're unsure about your current capacity, you can request a professional load assessment to determine the best path forward for your property.

Why Your Sydney Tesla Setup May Require a Level 2 ASP

While a standard electrician is qualified to perform internal wiring, a Tesla wall connector installation Sydney homeowners commission often reveals that the property’s connection to the street is the weak link. Under the Service and Installation Rules of NSW (SIRNSW), only a Level 2 Accredited Service Provider (ASP) is authorised to work on the network-facing side of your electrical system. This includes the point-of-attachment, service protection devices, and metering. If your installation requires a capacity increase to support high-speed charging, a Level 2 specialist is a legal necessity rather than an optional extra.

Older Sydney properties, particularly in established suburbs, often feature consumer mains that are undersized for 2026 electrical demands. A professional Consumer Mains Installation ensures the cables running from the street to your switchboard can handle the sustained thermal load generated by hours of continuous 32A charging. High Demand Electrical (EC Licence 397193C) bridges this gap by managing both the internal charger setup and the critical external network upgrades required by your provider.

Identifying Inadequate Infrastructure

Signs of undersized mains include flickering lights when the car starts charging or a main switch that feels excessively hot to the touch. Daisy-chaining an EV charger onto an existing power circuit is a severe fire risk and a direct violation of AS/NZS 3000. To prevent these hazards, we perform a comprehensive Electrical Safety Inspection before any hardware is mounted. This assessment verifies that your home's infrastructure can sustain the load without compromising the integrity of your entire electrical system.

Handling Ausgrid and Endeavour Energy Defects

If an unqualified installer makes a connection that exceeds the property's authorised capacity, it may trigger a Defect Notice Rectification from Ausgrid or Endeavour Energy. These notices demand immediate action to bring the site into compliance. As an authorised Level 2 ASP, HDE has the credentials to break network seals, upgrade metering, and rectify defects on the spot. Our adherence to ISO 45001 (Health and Safety) ensures that even when working on live network connections, the safety of your property and our technicians remains the absolute priority. This end-to-end capability means you won't have to coordinate between multiple contractors to get your Tesla on the road.

The Step-by-Step Process for a Compliant Tesla Installation

A compliant Tesla wall connector installation Sydney project begins with a rigorous site assessment. We evaluate your existing switchboard configuration and measure the exact cable run distance from the mains to your preferred charging location. This distance is critical because longer runs require larger cable cross-sections to prevent excessive voltage drop. We then perform a mandatory maximum demand calculation. This technical audit ensures that your property's total electrical load, including the new 32A charger, remains within the safe operating limits of your consumer mains and the local network infrastructure.

Once the engineering phase is complete, the physical installation involves mounting the Gen 3 unit and running a dedicated branch circuit. This circuit must be isolated from all other household appliances to comply with Clause 7.8 of AS/NZS 3000. We use high-quality copper conductors, typically 6mm² or 10mm², depending on the thermal grouping and installation environment. Our team at High Demand Electrical (EC Licence 397193C) ensures every connection point is torqued to specification to prevent high-resistance joints that could lead to thermal failure over years of continuous use.

Switchboard Preparation and Safety Switches

Older Sydney switchboards often lack the necessary space or modern protection for EV charging. A compliant setup requires a dedicated Safety Switch Installation. We install Type A RCBOs specifically rated for EV loads. These devices work in tandem with the Gen 3 Wall Connector's internal 6mA DC leakage detection to provide comprehensive protection against electric shock. If your enclosure is overcrowded, we may recommend a sub-board or a full switchboard upgrade to ensure adequate ventilation and prevent thermal tripping during long charging sessions.

Final Testing and CCEW Lodgement

Commissioning is the final technical hurdle. We conduct earth loop impedance and insulation resistance testing to verify that the circuit is fault-tolerant and safe for daily operation. Following the physical tests, we configure the unit's Wi-Fi and power-sharing settings, ensuring it is ready for over-the-air updates and Tesla app integration. As a final step, we lodge your digital Certificate of Compliance for Electrical Work (CCEW) through the Building Commission NSW portal. This document is your legal proof of a compliant installation, which is essential for your vehicle's warranty and your home insurance policy.

If you are ready to secure a safe and certified home charging setup, book your Tesla installation assessment with our Level 2 team today.

Choosing High Demand Electrical for Your Tesla Charger Setup

Selecting the right contractor for your Tesla wall connector installation Sydney project is a decision that impacts the long-term safety and efficiency of your home. High Demand Electrical (HDE) operates as a specialised Level 2 ASP, providing a seamless transition from vehicle delivery to high-speed charging. We serve the Inner West, Sydney’s West, South West, and the Sutherland Shire, bringing a level of technical depth that standard residential electricians cannot match. Our team doesn't just install hardware; we engineer a complete electrical solution that respects the integrity of the Sydney grid.

Safety is the cornerstone of our operations. HDE is a Triple ISO Certified company, holding certifications in ISO 9001 (Quality Management), ISO 45001 (Health and Safety), and ISO 14001 (Environmental Management). This voluntary commitment to international standards ensures that every project, from complex Switchboard Upgrades to final charger commissioning, is executed with surgical precision. We strictly adhere to SIRNSW and AS/NZS 3000 standards, providing you with the professional reassurance that your property is protected against electrical fire risks and network defects.

Local Sydney Expertise You Can Trust

Operating under EC Licence 397193C, HDE is uniquely positioned to handle the specific challenges of Sydney’s aging infrastructure. We are authorised for network work across Ausgrid, Endeavour Energy, and Essential Energy territories. This means we manage the entire lifecycle of your project, including service line connections and metering. Our proven track record is detailed in our comprehensive EV Charger Installation Sydney resource, which highlights our commitment to transparent communication and technical excellence.

Contact High Demand Electrical Today

Don't leave your home’s safety to chance with a generalist installer. If you're ready to secure a fast, safe, and fully compliant charging setup, our team is standing by to assist. We provide detailed assessments that account for your property's maximum demand and future scalability. Contact our Sydney team for a professional assessment and experience the confidence of working with a Triple ISO Certified Level 2 ASP.

Phone: 0402 559 777
Email: chris@highdemandelectrical.com.au
Address: 133 Balmain Road, Leichhardt NSW

Secure Your Sydney Home’s Charging Future Today

As the shift toward electric mobility accelerates, ensuring your home infrastructure is ready is no longer optional. A compliant Tesla wall connector installation Sydney homeowners can trust requires more than just mounting a box on a wall; it demands a deep understanding of maximum demand and network compliance. You now know that upgrading to three-phase power can triple your charging speed while protecting your property from thermal overloads and nuisance tripping.

High Demand Electrical (EC Licence 397193C) is ready to manage every technical phase of your project. As a Triple ISO Certified company and authorised Ausgrid and Endeavour Energy provider, we guarantee that your installation meets all SIRNSW and AS/NZS 3000 standards. We handle the complex heavy lifting, from consumer mains upgrades to digital CCEW lodgement, so you can enjoy your Tesla with absolute peace of mind.

Book Your Tesla Wall Connector Installation with Sydney’s Level 2 ASP Experts and join the thousands of Sydney residents making the switch safely. We look forward to powering your journey.

Frequently Asked Questions

Do I need a Level 2 electrician for a Tesla Wall Connector installation in Sydney?

You need a Level 2 Accredited Service Provider (ASP) if your home requires infrastructure upgrades like consumer mains or point-of-attachment modifications. While a standard electrician can install the charger unit, they are legally prohibited from working on the network-facing side. High Demand Electrical is authorised for service line, metering, and connection work across Sydney, ensuring your high-speed charging setup is fully compliant with SIRNSW rules and your network provider's specific safety protocols.

How much does it cost to install a Tesla Wall Connector in Sydney?

The Tesla Gen 3 hardware currently retails for A$800 directly from Tesla Australia, but total installation costs vary based on your property's specific requirements. Factors such as the distance from your switchboard to the charger, the need for consumer mains upgrades, and whether you require single-phase or three-phase power will influence the final quote. We provide tailored assessments to ensure your Tesla wall connector installation Sydney project is priced accurately for your home’s infrastructure.

Can I install a Tesla charger if I only have single-phase power?

Yes, you can install a Tesla Wall Connector on a single-phase supply, though your charging speed will be limited to approximately 7.4kW (32A). This typically adds 40 to 50 kilometres of range per hour of charging. If you require faster speeds or have a high-demand household with ducted air conditioning, we can facilitate a single-phase to three-phase power upgrade to unlock the unit's full 11kW potential for modern Model 3 and Model Y vehicles.

What is a CCEW and why do I need one for my EV charger?

A Certificate of Compliance for Electrical Work (CCEW) is a mandatory legal document that confirms your electrical work meets AS/NZS 3000 safety standards. In NSW, every EV charger installation must be registered with the network provider via a digital CCEW. High Demand Electrical (EC Licence 397193C) handles this entire lodgement process through the Building Commission NSW portal. This certificate is essential for maintaining your vehicle warranty and ensuring your home insurance remains valid.

Will a Tesla Wall Connector work with other electric vehicle brands?

The Gen 3 Tesla Wall Connector uses a universal Type 2 (Mennekes) plug, making it compatible with most modern electric vehicles sold in Australia. This includes brands like BYD, Hyundai, Kia, and MG. While it offers specialised integration for Tesla owners, such as the ability to open the charge port via the handle, its power-sharing capabilities and IP55 weather rating make it a versatile charging solution for any multi-EV household in Sydney.

How long does a professional Tesla charger installation typically take?

A standard installation typically takes between two and four hours to complete. This timeframe includes the physical mounting of the unit, wiring the dedicated circuit, and performing mandatory safety testing. However, if your property requires a switchboard upgrade or a Level 2 ASP consumer mains replacement to handle the 32A load, the process will take longer. We always provide a clear timeline following our initial site assessment to ensure minimal disruption to your day.

Does High Demand Electrical handle Ausgrid or Endeavour Energy paperwork?

Yes, we manage all necessary notifications and compliance paperwork for Ausgrid, Endeavour Energy, and Essential Energy. As an authorised Level 2 ASP, we are qualified to lodge digital CCEW certificates and coordinate with network providers for metering or service line modifications. This end-to-end service ensures your installation is legally registered, preventing future defect notices and ensuring your home remains compliant with the Service and Installation Rules of NSW (SIRNSW).

Is a switchboard upgrade mandatory for all Tesla installations?

A switchboard upgrade isn't mandatory for every home, but it's often necessary for older Sydney properties with ceramic fuses or limited space. Your switchboard must have adequate room for a dedicated EV circuit protected by a modern Type A RCBO. We perform a maximum demand calculation during our safety inspection to determine if your current board can safely sustain a continuous 32A load for your Tesla wall connector installation Sydney project.
