Avoid five figure switchboard bills for Sydney property managers

Commercial switchboard replacement projects in Sydney vary widely in cost depending on size and complexity, with prices increasing substantially for multi-board upgrades and large strata or main infrastructure projects. The biggest factor pushing a quote above these bands is almost always consumer mains or network supply work. Book a Level 2 site inspection early so you get a fixed written quote before the number moves.

TL;DR:

• Upgrading consumer mains or network supply significantly raises project costs and often requires Level 2 accreditation and coordinated network approvals.
• Most projects involve fixed site inspections to accurately assess mains condition, asbestos risks, and access constraints before providing a firm quote.
• Single-board replacements typically cost less than several thousand dollars, while multi-board or large strata projects can reach into the high five-figure range.
• Access issues, asbestos presence, and staged work for tenant continuity are key factors influencing project duration and cost escalation.
• A fixed-price quote should clearly specify scope, provisional sums, and exclusions, with early network liaison to avoid surprises.

Table of Contents

• How much does a commercial switchboard upgrade cost in Sydney?
• What does a commercial switchboard upgrade actually involve?
• What drives the price up on a commercial job?
• How do you get an accurate fixed quote?
• Network coordination and Level 2 ASP work in NSW
• How long does a commercial switchboard upgrade take?
• What Sydney property managers get wrong about switchboard budgets
• Book a fixed-price switchboard quote with High Demand Electrical
• Sources
• FAQ

How much does a commercial switchboard upgrade cost in Sydney?

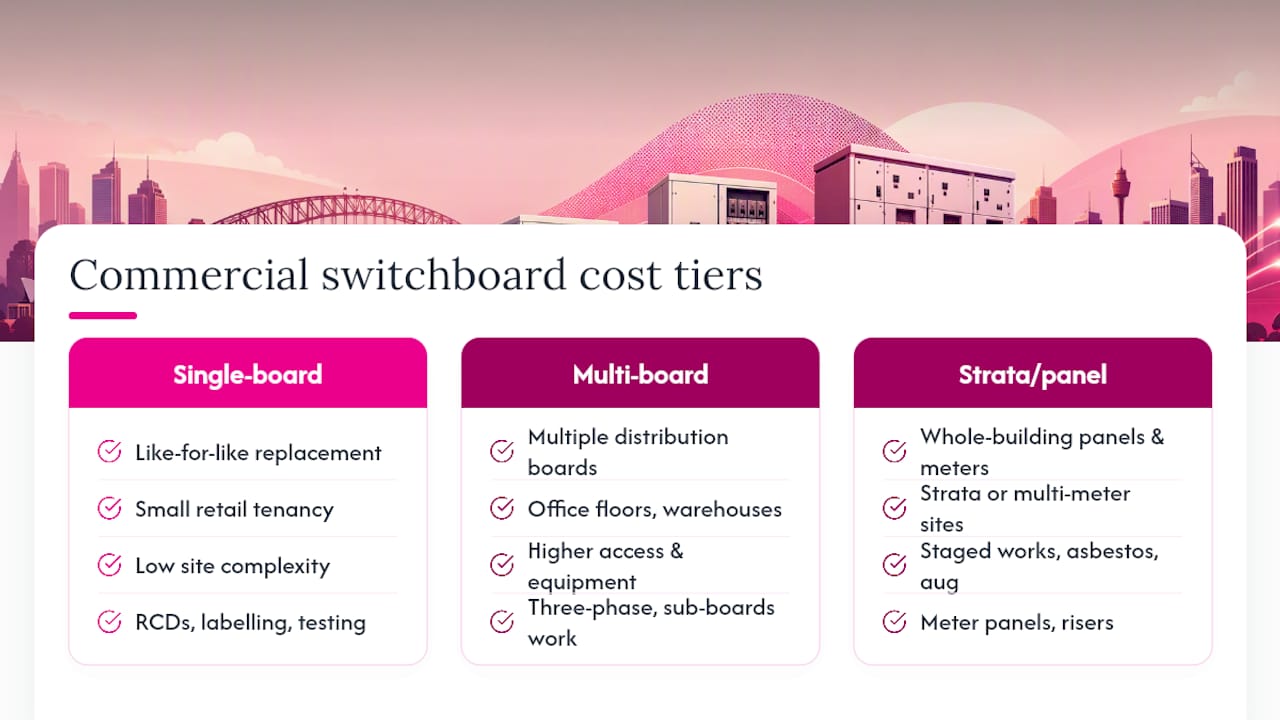

Pricing splits into three rough tiers, and where your project lands depends on board count, site access, and how much of the network supply needs touching.

A like-for-like single commercial board replacement generally falls within a broad range reflecting site specifics and scope. This covers swapping an ageing board for a modern one with the same capacity, fitting RCDs, tidying circuit labelling, and basic compliance testing. A small retail tenancy replacing a corroded 1990s board with a new enclosure and updated protection typically sits at the lower end of this range.

Multi-board commercial upgrades typically cost more due to increased complexity and equipment requirements. This tier applies to office floors with several distribution boards, warehouses needing three-phase capacity for machinery, or buildings where the main switchboard and two or three sub-boards all need work in the same project. Dynamic Group’s cost guide notes that simpler residential jobs in NSW commonly land between $900 and $2,700, which underlines how much scale and complexity separate a house upgrade from a genuine commercial job.

Full strata or large multi-meter panel projects often involve significant expenses that can reach high five-figure sums for bigger sites. Terawatt’s commercial and strata pricing examples show that projects involving staged works, network augmentation, and asbestos removal regularly scale into this territory once every meter panel and riser needs attention.

These figures are indicative starting points, not fixed prices. No two commercial sites have identical mains capacity, board age, or access constraints, so every serious quote needs an on-site inspection before you commit a budget line.

What does a commercial switchboard upgrade actually involve?

A quote covers more than swapping one metal box for another. The scope usually includes:

• Main switchboard replacement, including new busbars, enclosures, and circuit protection sized to the building’s actual load.
• Distribution board upgrades and labelling, so tenants and future electricians can identify circuits without guesswork.
• RCDs, RCBOs, and surge protection, fitted to meet current safety standards across all final sub-circuits.
• Three-phase conversions and metering changes, needed when equipment loads exceed single-phase capacity or when tenancies are being reconfigured.
• Ancillary trade work, such as new cabling runs, trenching for underground services, and coordination with builders or asbestos removalists where the existing board contains legacy materials.

Switchboard equipment itself is readily available through Australian manufacturers. Clean Tech Controls, for instance, supplies panels and hardware suited to commercial installations across NSW, which keeps standard replacement parts in stock rather than on a shipping container somewhere offshore.

What drives the price up on a commercial job?

A handful of factors decide whether your project lands at the bottom of its range or well above it.

• Consumer mains and network supply upgrades are usually the single largest line item, particularly when the existing mains can’t carry increased load.
• Asbestos and hazardous material handling adds cost and time whenever older boards contain legacy insulation or backing materials.
• Access difficulties, including scaffolding, core drilling through slabs, or working in tight plant rooms, all add labour hours.
• After-hours and weekend work carries a premium, but it’s often unavoidable on occupied commercial sites.
• Tenant metering reconfiguration scales cost with the number of meters, since each one needs its own isolation, testing, and paperwork.
• Permit, testing, and certification fees are smaller individually but add up across a multi-board project.

Pro Tip: Ask your contractor to flag any provisional sums for asbestos removal or network augmentation before work starts. Provisional sums are estimates for costs that can’t be locked in until the site is opened up, and unclear ones are where budgets quietly blow out.

How do you get an accurate fixed quote?

A proper Level 2 site inspection should check several things before anyone writes a number down:

1. Consumer mains condition — age, capacity, and whether they can support any planned load increase.
2. Meter panel and earthing/neutral setup — older buildings often have earthing arrangements that don’t meet current standards.
3. Asbestos risk — a visual assessment of board backing and surrounding materials, with testing recommended where doubt exists.
4. Tenant access and distribution layout — how power gets staged during works without cutting off occupied areas.

Beyond the physical inspection, ask who manages network applications with the distributor, what’s specifically included and excluded in the quote, whether any provisional sums apply, and how staged works will be sequenced. A genuine fixed-price quote should list exactly this scope in writing, not just a lump sum with no breakdown.

Network coordination and Level 2 ASP work in NSW

Any job touching consumer mains or network connection points needs a Level 2 Accredited Service Provider, not a standard electrician. Ausgrid’s contestable connection process sets out when this applies and what documentation gets lodged with the network operator.

Network application and augmentation charges are typically billed by the distributor, and acceptance times vary depending on how much capacity your site is requesting. This coordination work, scheduling inspections, lodging paperwork, liaising with Ausgrid or Endeavour Energy, is a real part of project cost, not an add-on. A contractor who’s done this before can usually forecast the likely network outcome from an early site scan, which saves weeks of back-and-forth later.

How long does a commercial switchboard upgrade take?

A straight single-board swap usually takes one to two days on-site. Multi-board upgrades typically run one to two weeks depending on how many circuits need reconnecting. Large strata or main infrastructure projects can stretch across several weeks, particularly when network augmentation is involved.

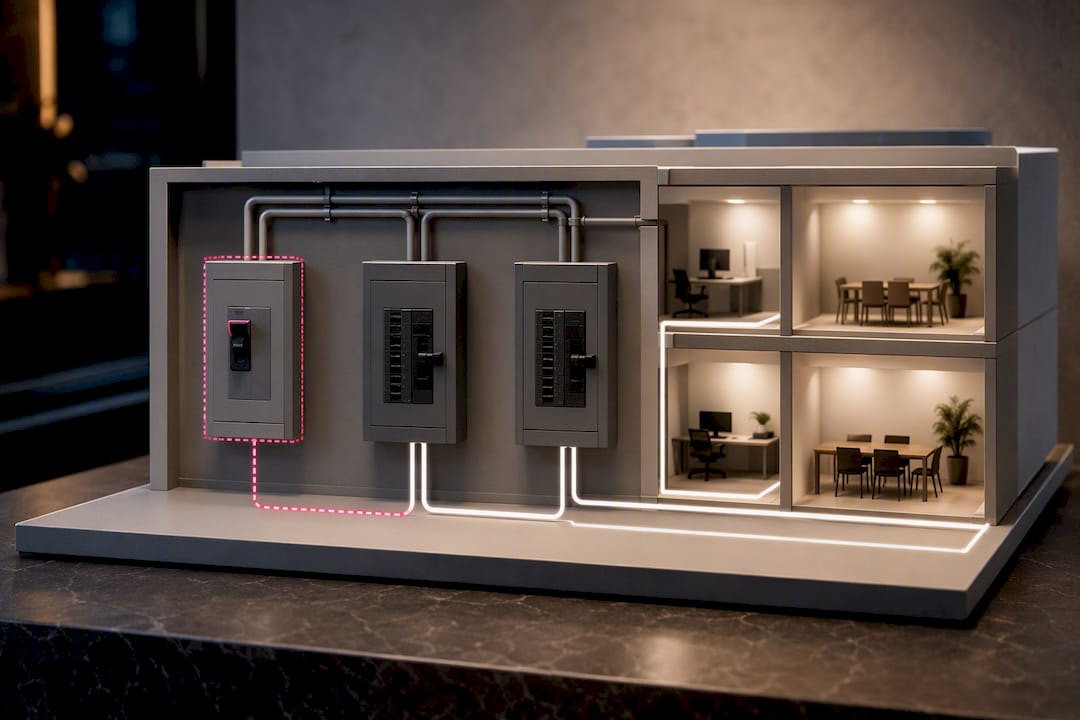

Staged works, where power is progressively transferred board by board, keep tenants powered through most of the project rather than shutting the whole site down at once. This staging adds labour and logistics cost but protects rental income and avoids blanket outage notices. Expect after-hours or weekend premiums where staging around business hours isn’t practical.

What Sydney property managers get wrong about switchboard budgets

Most cost blowouts on commercial switchboard projects aren’t caused by bad electricians. They’re caused by owners budgeting off a single verbal number instead of a written scope, then discovering halfway through that consumer mains needed upgrading or the old board had asbestos backing nobody tested for.

The fix isn’t complicated: get a proper site inspection before you set a budget, and insist on a fixed quote that names its provisional sums instead of hiding them. A contractor who handles Level 2 ASP work directly, rather than subcontracting network liaison to a third party, tends to move faster because there’s one team managing the technical relationship with Ausgrid or Endeavour Energy from day one. Free site inspections make this easier to justify before you’ve committed to anything.

— Christopher

Book a fixed-price switchboard quote with High Demand Electrical

This local certified Level 2 electrician serves commercial property owners seeking a fixed price instead of a guess. As a certified Level 2 electrician operating across Sydney, the team handles network liaison with Ausgrid and Endeavour Energy directly, so you’re not paying a middleman to coordinate approvals.

High Demand Electrical offers free site inspections for Level 2 work, backed by ISO-aligned quality processes and more than 300 five-star reviews from Sydney clients. Every commercial job gets a written scope before work starts, covering inclusions, exclusions, and any provisional sums, plus 24/7 emergency support if something goes wrong outside business hours. If you’re weighing up a switchboard upgrade for your building, book a site inspection and get a fixed quote before you finalise next year’s maintenance budget.

Sources

• Clean Tech Controls

FAQ

How much does it cost to upgrade a switchboard in Sydney?

Commercial switchboard replacement projects in Sydney vary widely in cost depending on size and complexity, with prices increasing substantially for multi-board upgrades and large strata or main infrastructure projects, especially when consumer mains or network supply work is involved.

How much does it cost to upgrade to a 3-phase switchboard?

Three-phase conversions typically occur as part of multi-board upgrades and may involve new metering, larger cabling, and occasionally network supply upgrades, contributing to increased project complexity and cost.

How much does it cost to upgrade a fuse board?

Replacing an old fuse board with a modern circuit breaker board on a commercial site generally falls within the broad single-board replacement cost range and may increase if asbestos or access difficulties are encountered.

How much does it cost to upgrade a circuit breaker panel?

A circuit breaker panel upgrade usually aligns with single-board replacement pricing, with final costs influenced by board capacity, RCD necessities, and site access conditions.

Do I need a Level 2 electrician for a switchboard upgrade?

Any work touching consumer mains or network connection points legally requires a Level 2 Accredited Service Provider like Hdlevel2electriciansydney, rather than a standard electrician.
